Scene was made by drawing a sketch on paper. From sketch it was easy to get the main coordinates of the primitives. Then the objects were written to VRML file (bicycle.wrl) and placed to their exact positions with "trial and error" -method.


Sketch of bicycle scene and same scene later on in VRML viewer

If there were materials that were used is more than one primitive, a material definition was made at the beginning of VRML-file to make the code easier to modify (link to code).

8.2 Lightning

Scene uses two directional lights: A green one positioned towards positive x-axis and a red one positioned towards negative x-axis. Magneta spotlight illuminates the scene from negative y-axis. Cyan spotlight is located at (0, 4, 0) and is directed towards negative y-axis. (link to code).

Red and green directional lights

Magneta spotlight from negative y-axis

8.3 Texture Mapping

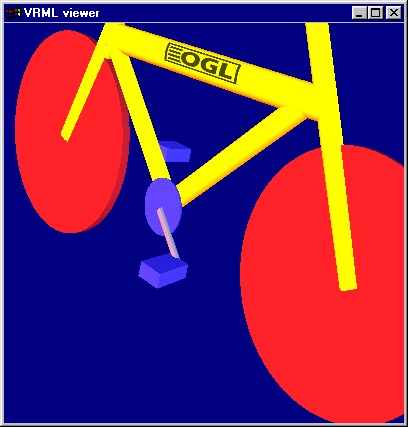

Texture was used to make a name sticker on the main bar of bicycle. Texture was first made using Corel Photo-Paint image processing application. Sticker was doubled in the image to get the sticker on both sides of the main bar. Vertical and horisontal space was added to make sticker to stay in the middle of the bar. (link to code).

Appendix A. Source Code for VRML Viewer (vrml97.py)

from string import *
from OpenGL.GL import *
from OpenGL.GLU import *
from OpenGL.GLUT import *
from Numeric import *
from TBEX import *

import sys, string, re, os

#import tb

#----------------------------------------------------------------------------

numlights = 1
detail_cone = 4
detail_cylinder = 4
detail_sphere = 25
rendering_mode = 2

#----------------------------------------------------------------------------

def normalize(v):
  length = sqrt(v[0]*v[0]+v[1]*v[1]+v[2]*v[2])
  v[0] = v[0] / length
  v[1] = v[1] / length
  v[2] = v[2] / length

def normal(a,b,c):
  p1 = [ b[0] - a[0], b[1] - a[1], b[2] - a[2] ]
  p2 = [ c[0] - a[0], c[1] - a[1], c[2] - a[2] ]

  normalize(p1)
  normalize(p2)

  p3 = [ p1[1] * p2[2] - p1[2] * p2[1], p1[2] * p2[0] - p1[0] * p2[2], p1[0] * p2[1] - p1[1] * p2[0] ]

  normalize(p3)

  glNormal3d( p3[0], p3[1], p3[2] )

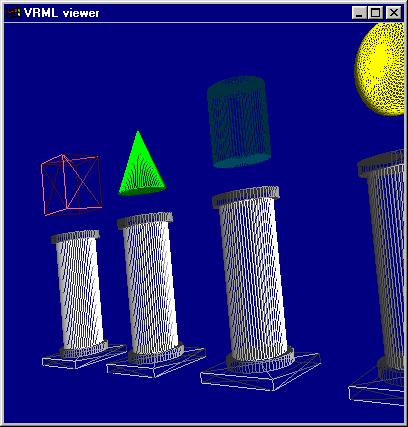

def next_rendering_mode():
  global rendering_mode

  rendering_mode = rendering_mode + 1
  if rendering_mode == 3:
    rendering_mode = 0
  print 'rendering mode is now', rendering_mode

#----------------------------------------------------------------------------

def draw_triangle(a,b,c):
  normal(c,b,a)

  if rendering_mode == 0:
    glBegin( GL_POINTS )

  if rendering_mode == 1:
    glBegin( GL_LINE_LOOP )

  if rendering_mode == 2:
    glBegin( GL_TRIANGLES )

  glVertex3f( c[0], c[1], c[2] )
  glVertex3f( b[0], b[1], b[2] )
  glVertex3f( a[0], a[1], a[2] )
  glEnd()

def cone(r,height,side,bottom,detail):

	mp = height/2	#midpoint of cone

	if side == 0: height = 0

	triangle_cone( [0,-mp,-r],[r,-mp,0],detail,r,mp,bottom,side)
	triangle_cone( [r,-mp,0],[0,-mp,r],detail,r,mp,bottom,side)
	triangle_cone( [0,-mp,r],[-r,-mp,0],detail,r,mp,bottom,side)
	triangle_cone( [-r,-mp,0],[0,-mp,-r],detail,r,mp,bottom,side)

def triangle_cone(a,b,n,r,mp,bottom,side):
  if n == 0:

    tip = [0,mp,0]

    draw_triangle(a,b,tip)

    if bottom == 1:

      c = [0,-mp,0]

      draw_triangle(c,b,a)

  else:
    ab = [ (a[0]+b[0])/2.0, 0, (a[2]+b[2])/2.0 ]	        #midpoint of a -> b
    lab = sqrt( ab[0]*ab[0] + ab[1]*ab[1] + ab[2]*ab[2] )	#ab distance to origo

    #
    # move midpoints, the distance to the origo should be the radius of the spehere
    #
    ab[0] = ab[0] * r / lab
    #ab[1] = ab[1] * r / lab
    ab[1] = -mp
    ab[2] = ab[2] * r / lab

    #
    # recursively generate more triangles
    #

    triangle_cone(a,ab,n-1,r,mp,bottom,side)
    triangle_cone(ab,b,n-1,r,mp,bottom,side)

#----------------------------------------------------------------------------

def draw_quad(a,b,c,d,s1,s2):

	normal(d,c,b)

	if rendering_mode == 0:
	  glBegin( GL_POINTS )

	if rendering_mode == 1:
	  glBegin( GL_LINE_LOOP )

	if rendering_mode == 2:
	  glBegin( GL_QUADS )

	glTexCoord2f( s1, 0 )
	glVertex3f( a[0], a[1], a[2] )
	glTexCoord2f( s2, 0 )
	glVertex3f( b[0], b[1], b[2] )
	glTexCoord2f( s2, 1 )
	glVertex3f( c[0], c[1], c[2] )
	glTexCoord2f( s1, 1 )
	glVertex3f( d[0], d[1], d[2] )
	glEnd()

def cylinder(r,height,side,bottom,top,detail):
  glPolygonMode( GL_FRONT, GL_FILL )
  glColor3( 0.5, 0.5, 0 )

  mp = height/2	#midpoint of cone

  if side == 0:
    height = 0

  quad_cylinder( [0,-mp,-r],[r,-mp,0], 0, 0.25, detail,r,mp,bottom,top,side)
  quad_cylinder( [r,-mp,0],[0,-mp,r], 0.25, 0.5, detail,r,mp,bottom,top,side)
  quad_cylinder( [0,-mp,r],[-r,-mp,0],0.5, 0.75, detail,r,mp,bottom,top,side)
  quad_cylinder( [-r,-mp,0],[0,-mp,-r], 0.75, 1, detail,r,mp,bottom,top,side)

def quad_cylinder(a,b,s1,s2,n,r,mp,bottom,top,side):
  if n == 0:

    c = [b[0],mp,b[2]]
    d = [a[0],mp,a[2]]

    if side == 1:
      draw_quad(a,b,c,d,s1,s2)

    if bottom == 1:

      p = [0,-mp,0]
      draw_triangle(p,b,a)

    if top == 1:

      p = [0,mp,0]
      draw_triangle(p,d,c)


  else:
    ab = [ (a[0]+b[0])/2.0, 0, (a[2]+b[2])/2.0 ]	        #midpoint of a -> b
    lab = sqrt( ab[0]*ab[0] + ab[1]*ab[1] + ab[2]*ab[2] )	#ab distance to origo

    #
    # move midpoints, the distance to the origo should be the radius of the spehere
    #
    ab[0] = ab[0] * r / lab
    ab[1] = -mp
    ab[2] = ab[2] * r / lab

    #
    # recursively generate more triangles
    #
    s12 = (s1+s2)/2.0
    quad_cylinder(a,ab,s1,s12,n-1,r,mp,bottom,top,side)
    quad_cylinder(ab,b,s12,s2,n-1,r,mp,bottom,top,side)

#----------------------------------------------------------------------------

pi = 3.1415926

def sphere_vertex(r, t, p):
  v = [r*cos(p)*sin(t), r*sin(p)*sin(t),r*cos(t)]
  return v

def sphere_texture(t, p):
  global pi
  v = [p / (2.0*pi), t / float(pi)]
  return v

def sphere_quad(r, t1, t2, p1, p2):
  v1 = sphere_vertex(r, t2, p1)
  v2 = sphere_vertex(r, t2, p2)
  v3 = sphere_vertex(r, t1, p2)
  v4 = sphere_vertex(r, t1, p1)

  tex1 = sphere_texture(t2, p1)
  tex2 = sphere_texture(t2, p2)
  tex3 = sphere_texture(t1, p2)
  tex4 = sphere_texture(t1, p1)

  normal(v1, v2, v3)

  glTexCoord2f( tex1[0], tex1[1] )
  glVertex3f( v1[0], v1[1], v1[2] )

  glTexCoord2f( tex2[0], tex2[1] )
  glVertex3f( v2[0], v2[1], v2[2] )

  glTexCoord2f( tex3[0], tex3[1] )
  glVertex3f( v3[0], v3[1], v3[2] )

  glTexCoord2f( tex4[0], tex4[1] )
  glVertex3f( v4[0], v4[1], v4[2] )


def sphere(r,d1,d2):
  global pi

  s_theta = pi / d1
  s_psi = pi / d2

  p_theta = 0.0
  c_theta = s_theta

  glEnable( GL_TEXTURE_2D )

  if rendering_mode == 0:
    glBegin( GL_POINTS )

  if rendering_mode == 1:
    glBegin( GL_LINE_LOOP )

  if rendering_mode == 2:
    glBegin( GL_QUADS )

  while p_theta <= pi:

    p_psi = 0.0
    c_psi = s_psi

    while p_psi <= (2.0*pi):
      sphere_quad(r, p_theta, c_theta, p_psi, c_psi)

      p_psi = c_psi
      c_psi = c_psi + s_psi

    p_theta = c_theta
    c_theta = c_theta + s_theta

  glEnd()
  glDisable( GL_TEXTURE_2D )

#----------------------------------------------------------------------------

def npow2(i):
  n = 1
  while n < i:
    n = n * 2
  return n

def loadimage(fname):
  image = myImg( fname )

  oldwidth = image.w
  oldheight = image.h

  newwidth = npow2( oldwidth )
  newheight = npow2( oldheight )

  newbuffer = gluScaleImage( GL_RGB, oldwidth, oldheight, GL_UNSIGNED_BYTE, image.data, newwidth, newheight, GL_UNSIGNED_BYTE )
  glTexImage2D(GL_TEXTURE_2D, 0, 3, newwidth, newheight, 0, GL_RGB, GL_UNSIGNED_BYTE, newbuffer )

#----------------------------------------------------------------------------

class myImg:
    def __init__(self, fname):
        ending = string.split(fname, '.')[1]
        if ending == 'jpg':
            try:
                import Image
                img = Image.open(fname)
                if img.mode != 'RGB':
                    img = img.convert('RGB')
                self.data = img.tostring('raw', 'RGB', 0, -1)
                self.w = img.size[0]
                self.h = img.size[1]
            except ImportError:
                try:
                    from wxPython.wx import *
                    wxImage_AddHandler(wxJPEGHandler())
                    wximg = wxImage(fname, wxBITMAP_TYPE_JPEG)
                    self.w = wximg.GetWidth()
                    self.h = wximg.GetHeight()
                    self.data = wximg.GetData()
                    self.flip()
                except ImportError:
                    print "Don't have PIL or wxPython, cannot read *.jpg"
        elif ending == 'ppm':
            # read ppm files
            f = open(fname, 'rb')
            f.readline(); f.readline()
            self.w, self.h = tuple(map(int, string.split(f.readline())))
            f.readline()
            self.data = f.read()
            self.flip()
    def flip(self):
        """Assume we have loaded in an RGB image, flip it vertically."""
        w = 3*self.w
        tmp = []
        for i in range(self.h):
            tmp.insert(0, self.data[i*w: (i+1)*w])
        self.data = string.join(tmp, '')

#----------------------------------------------------------------------------

def expect(tok, l):
    """Make sure the first token of l is tok, consume it."""
    assert l[0] == tok
    del l[0]

def MFFreaderN(value, l, n):
    """Read lists of n floats from l (either one or inside [ and ]),
    put them into value."""
    if l[0] == '[':
        i = l.index(']')
        del value[:]
        v = map(float, l[1:i])
        for j in xrange(0,i-1,n):
            value.append(v[j:j+n])
        del l[:i+1]
    else:
        value[:] = map(float, l[:n])
        del l[:n]

def MFFreader(value, l):
    """Read floats from l (either one or inside [ and ]),
    put them into value."""
    if l[0] == '[':
        i = l.index(']')
        value[:] = map(float, l[1:i])
        del l[:i+1]
    else:
        value[:] = [float(l.pop(0))]

class VRML_field:
    """A base class for various VRML fields.
    The children will have two methods, one
    for initialization with a default value,
    another for parsing the field from list
    of tokens."""
    pass

class SFBool(VRML_field):
    def __init__(self,x=0):
        self.value = x
    def parse(self, l):
        self.value = (l.pop(0) == 'TRUE')

class SFColor(VRML_field):
    def __init__(self,r=0.,g=0.,b=0.):
        self.value = [r,g,b]
    def parse(self, l):
        self.value = map(float, l[:3])
        del l[:3]

class MFColor(VRML_field):
    def __init__(self,c=None):
        if c: self.value = c
        else: self.value = []
    def parse(self, l):
        MFFreaderN(self.value, l, 3)

class SFFloat(VRML_field):
    def __init__(self,x=.0):
        self.value = x
    def __float__(self):
        return self.value
    def parse(self, l):
        self.value = float(l.pop(0))

class MFFloat(VRML_field):
    def __init__(self,x=None):
        if x: self.value = x
        else: self.value = []
    def parse(self, l):
        MFFreader(self.value, l)

class SFImage(VRML_field):
    def __init__(self):
        self.value = [0,0,0,[]]
    def parse(self, l):
        self.value[:3] = l[:3]
        del l[:3]
        n = self.value[0] * self.value[1]
        self.value[3] = map(lambda x: atoi(x,0), l[:n])
        del l[:n]

class SFInt32(VRML_field):
    def __init__(self,x=0):
        self.value = x
    def parse(self, l):
        self.value = int(l.pop(0))

class MFInt32(VRML_field):
    def __init__(self):
        self.value = []
    def parse(self, l):
        if l[0] == '[':
            i = l.index(']')
            try:
                self.value[:] = map(int, l[1:i])
            except:
                self.value[:] = map(lambda x: atoi(x,0), l[1:i])
            del l[:i+1]
        else:
            self.value = [atoi(l.pop(0),0)]

class SFNode(VRML_field):
    def __init__(self, v = 0):
        self.value = v
    def parse(self, l):
        if l[0] == 'NULL':
            del l[0]
        else:
            self.value = parse_node(l)
    def draw(self):
        if self.value: self.value.draw()

class MFNode(VRML_field):
    def __init__(self):
        self.value = []
    def parse(self, l):
        if l[0] == '[':
            del l[0]
            while l[0] != ']':
                self.value.append(parse_node(l))
            del l[0]
        else:
            self.value = [parse_node(l)]
    def draw(self):
        for n in self.value: n.draw()

class SFRotation(VRML_field):
    def __init__(self, r=None):
        if r: self.value = r
        else: self.value = [0.,0.,1.,0.]
    def parse(self, l):
        self.value = map(float, l[:4])
        del l[:4]

class MFRotation(VRML_field):
    def __init__(self,x=None):
        if x: self.value = x
        else: self.value = []
    def parse(self, l):
        MFFreaderN(self.value, l, 4)

class SFString(VRML_field):
    def __init__(self,s=''):
        self.value = s
    def parse(self, l):
        #self.value = l.pop(0)[1:-1]
        self.value = l.pop(0)

class MFString(VRML_field):
    def __init__(self,ss=None):
        if ss: self.value = ss
        else:  self.value = []
    def parse(self, l):
        if l[0] == '[':
            del self.value[:]
            i = l.index(']')
            #self.value = map(lambda x:x[1:-1], l[1:i])
            self.value = l[1:i]
            del l[:i+1]
        else:
            #self.value = [l.pop(0)[1:-1]]
            self.value = [l.pop(0)]

class SFTime(VRML_field):
    def __init__(self,t=-1):
        self.value = t
    def parse(self, l):
        self.value = float(l.pop(0))

class MFTime(VRML_field):
    def __init__(self):
        self.value = []
    def parse(self, l):
        MFFreader(self.value, l)

class SFVec2f(VRML_field):
    def __init__(self,x=.0,y=.0):
        self.value = [x,y]
    def parse(self, l):
        self.value = [float(l[0]),float(l[1])]
        del l[:2]

class MFVec2f(VRML_field):
    def __init__(self,x=None):
        if x: self.value = x
        else: self.value = []
    def parse(self, l):
        MFFreaderN(self.value, l, 2)

class SFVec3f(VRML_field):
    def __init__(self,x=0.,y=0.,z=0.):
        self.value = [x,y,z]
    def parse(self, l):
        self.value = [float(l[0]),float(l[1]),float(l[2])]
        del l[:3]

class MFVec3f(VRML_field):
    def __init__(self,x=None):
        if x: self.value = x
        else: self.value = []
    def parse(self, l):
        MFFreaderN(self.value, l, 3)

class VRML_node:
    """A base class for a VRML node.
    Every actual node inherits from this."""
    def parse(self, l):
        """N.parse(l) parses all the fields between matching
        { and } and returns a reference to the node."""
        expect('{',l)
        while self.fields.has_key(l[0]):
            key = l.pop(0)
            field = self.fields[key].parse(l)
            # foundFields used only for debugging
            try:
                self.foundFields.append(field)
            except:
                self.foundFields = [field]
        expect('}',l)
        return self

    def draw(self):
        """draw() is called after the parse tree has been created.
        The real action is here. All the data (defaults or given
        values) can be found in self.fields.
        """
        pass

class Anchor(VRML_node):
    def __init__(self):
        self.fields = {
            'children'    : MFNode(),
            'description' : SFString(),
            'parameter'   : MFString(),
            'url'         : MFString(),
            'bboxCenter'  : SFVec3f(),
            'bboxSize'    : SFVec3f(-1,-1,-1),
            }

class Appearance(VRML_node):
    def __init__(self):
        self.fields = {
            'material'         : SFNode(NoMaterial()),
            'texture'          : SFNode(NoTexture()),
            'textureTransform' : SFNode(NoTextureTransform())
            }
    def draw(self):
        self.fields['material'].draw()
        self.fields['texture'].draw()
        self.fields['textureTransform'].draw()

class AudioClip(VRML_node):
    def __init__(self):
        self.fields = {
            'description': SFString(),
            'loop'       : SFBool(),
            'pitch'      : SFFloat(1.),
            'startTime'  : SFTime(),
            'stopTime'   : SFTime(),
            'url'        : MFString()
            }

class Background(VRML_node):
    def __init__(self):
        self.fields = {
            'groundAngle' : MFFloat(),
            'groundColor' : MFColor(),
            'backUrl'     : MFString(),
            'bottomUrl'   : MFString(),
            'frontUrl'    : MFString(),
            'leftUrl'     : MFString(),
            'rightUrl'    : MFString(),
            'topUrl'      : MFString(),
            'skyAngle'    : MFFloat(),
            'skyColor'    : MFColor([0.,0.,0.])
            }

class Billboard(VRML_node):
    def __init__(self):
        self.fields = {
            'axisOfRotation' : SFVec3f(),
            'children'       : MFNode(),
            'bboxCenter'     : SFVec3f(),
            'bboxSize'       : SFVec3f(-1.,-1.,-1.)
            }


class Box(VRML_node):
    ind = [[0,4,6,2], [1,3,7,5], # z
           [0,2,3,1], [4,5,7,6], # x
           [0,1,5,4], [2,6,7,3]] # y
    nrm = [[0,0,1], [0,0,-1],
           [1,0,0], [-1,0,0],
           [0,1,0], [0,-1,0]]
    def __init__(self):
        self.fields = {
            'size' : SFVec3f(2,2,2)
            }
    def draw(self):
        x,y,z = tuple(self.fields['size'].value)
        x*=.5; y*=.5; z*=.5
        c = [[ x, y, z], [ x, y,-z], [ x,-y, z], [ x,-y,-z],
             [-x, y, z], [-x, y,-z], [-x,-y, z], [-x,-y,-z]]
        t = [[0,0],[1,0],[1,1],[0,1]]

	if rendering_mode == 0:
	  glBegin( GL_POINTS )

	if rendering_mode == 1:
	  glBegin( GL_LINE_LOOP )

	if rendering_mode == 2:
	  glBegin( GL_QUADS )

        for i in range(6):
            glNormal3fv(Box.nrm[i])
            ind = Box.ind[i]
            for j in range(4):
                glTexCoord2f(t[j][0], t[j][1])
                glVertex3fv(c[ind[j]])
        glEnd()

class Collision(VRML_node):
    def __init__(self):
        self.fields = {
            'children'   : MFNode(),
            'collide'    : SFBool(1),
            'bboxCenter' : SFVec3f(),
            'bboxSize'   : SFVec3f(-1.,-1.,-1.),
            'proxy'      : SFNode()
            }

class Color(VRML_node):
    def __init__(self):
        self.fields = {
            'color' : MFColor()
            }

class ColorInterpolator(VRML_node):
    def __init__(self):
        self.fields = {
            'key'      : MFFloat(),
            'keyValue' : MFColor()
            }


class Cone(VRML_node):
    def __init__(self):
        self.fields = {
            'bottomRadius' : SFFloat(1.),
            'height'       : SFFloat(2.),
            'side'         : SFBool(1),
            'bottom'       : SFBool(1)
            }
    def draw(self):
        r = self.fields['bottomRadius'].value
        height = self.fields['height'].value
        side = self.fields['side'].value
        bottom = self.fields['bottom'].value
        cone(r,height,side,bottom,detail_cone)

class Coordinate(VRML_node):
    def __init__(self):
        self.fields = {
            'point' : MFVec3f(),
            }

class CoordinateInterpolator(VRML_node):
    def __init__(self):
        self.fields = {
            'key'      : MFFloat(),
            'keyValue' : MFColor(),
            }


class Cylinder(VRML_node):
    def __init__(self):
        self.fields = {
            'bottom' : SFBool(1),
            'height' : SFFloat(2.),
            'radius' : SFFloat(1.),
            'side'   : SFBool(1),
            'top'    : SFBool(1),
            }
    def draw(self):
        r = self.fields['radius'].value
        height = self.fields['height'].value
        side = self.fields['side'].value
        bottom = self.fields['bottom'].value
        top = self.fields['top'].value
        cylinder(r,height,side,bottom,top,detail_cylinder)

class CylinderSensor(VRML_node):
    def __init__(self):
        self.fields = {
            'autoOffset' : SFBool(1),
            'diskAngle'  : SFFloat(.262),
            'enabled'    : SFBool(1),
            'maxAngle'   : SFFloat(-1.),
            'minAngle'   : SFFloat(),
            'offset'     : SFFloat(),
            }



class DirectionalLight(VRML_node):
    def __init__(self):
        self.fields = {
            'ambientIntensity' : SFFloat(),
            'color'            : SFColor(1.,1.,1.),
            'direction'        : SFVec3f(0.,0.,-1.),
            'intensity'        : SFFloat(1.),
            'on'               : SFBool(1),
            }
    def draw(self):
        global numlights

        glPushMatrix()
        glLoadIdentity()

        light = GL_LIGHT0 + numlights

        if self.fields['on'].value == 1:
          glEnable( light )

        r,g,b = tuple(self.fields['color'].value)

        i = self.fields['intensity'].value
        glLight( light, GL_DIFFUSE, (i*r,i*g,i*b,1) )
        glLight( light, GL_SPECULAR, (i*r,i*g,i*b,1) )

        a = self.fields['ambientIntensity'].value
        glLight( light, GL_AMBIENT, (a*r,a*g,a*b,1) )

        x,y,z = tuple(self.fields['direction'].value)
        glLight( light, GL_POSITION, (x,y,z,0) ) # the zero makes the light directional not positional

        numlights = numlights + 1

        glPopMatrix()


class ElevationGrid(VRML_node):
    def __init__(self):
        self.fields = {
            'color'           : SFNode(),
            'normal'          : SFNode(),
            'texCoord'        : SFNode(),
            'height'          : MFFloat(),
            'ccw'             : SFBool(1),
            'colorPerVertex'  : SFBool(1),
            'creaseAngle'     : SFFloat(),
            'normalPerVertex' : SFBool(1),
            'solid'           : SFBool(1),
            'xDimension'      : SFInt32(),
            'xSpacing'        : SFFloat(1.),
            'zDimension'      : SFInt32(),
            'zSpacing'        : SFFloat(1.),
            }

class Extrusion(VRML_node):
    def __init__(self):
        self.fields = {
            'beginCap'     : SFBool(1),
            'ccw'          : SFBool(1),
            'convex'       : SFBool(1),
            'creaseAngle'  : SFFloat([[1,1],[1,-1],[-1,-1],
                                      [-1,1],[1,1]]),
            'crossSection' : MFVec2f(),
            'endCap'       : SFBool(1),
            'orientation'  : MFRotation([0,0,1,0]),
            'scale'        : MFVec2f([1,1]),
            'solid'        : SFBool(1),
            'spine'        : MFVec3f([[0,0,0],[0,1,0]]),
            }

class Fog(VRML_node):
    def __init__(self):
        self.fields = {
            'color'           : SFColor(1.,1.,1.),
            'fogType'         : SFString('LINEAR'),
            'visibilityRange' : SFFloat(),
            }

class FontStyle(VRML_node):
    def __init__(self):
        self.fields = {
            'family'      : MFString(['SERIF']),
            'horizontal'  : SFBool(1),
            'justify'     : MFString(['BEGIN']),
            'language'    : SFString(),
            'leftToRight' : SFBool(1),
            'size'        : SFFloat(1.),
            'spacing'     : SFFloat(1.),
            'style'       : SFString('PLAIN'),
            'topToBottom' : SFBool(1),
            }

class Group(VRML_node):
    def __init__(self):
        self.fields = {
            'children'   : MFNode(),
            'bboxCenter' : SFVec3f(),
            'bboxSize'   : SFVec3f(-1.,-1.,-1.),
            }
    def draw(self):
        # draw children
        self.fields['children'].draw()


class ImageTexture(VRML_node):
    def __init__(self):
        self.fields = {
            'url'     : MFString(),
            'repeatS' : SFBool(1),
            'repeatT' : SFBool(1),
            }
    def draw(self):
        fname = self.fields['url'].value[0]

        loadimage( fname )

        glEnable( GL_TEXTURE_2D )

        if self.fields['repeatS'].value == 1:
          glTexParameterf(GL_TEXTURE_2D, GL_TEXTURE_WRAP_S, GL_REPEAT)
        else:
          glTexParameterf(GL_TEXTURE_2D, GL_TEXTURE_WRAP_S, GL_CLAMP)

        if self.fields['repeatS'].value == 1:
          glTexParameterf(GL_TEXTURE_2D, GL_TEXTURE_WRAP_T, GL_REPEAT)
        else:
          glTexParameterf(GL_TEXTURE_2D, GL_TEXTURE_WRAP_T, GL_CLAMP)

        glTexEnvf(GL_TEXTURE_ENV, GL_TEXTURE_ENV_MODE, GL_MODULATE)

        glTexParameterf(GL_TEXTURE_2D, GL_TEXTURE_MAG_FILTER, GL_LINEAR)
        glTexParameterf(GL_TEXTURE_2D, GL_TEXTURE_MIN_FILTER, GL_LINEAR)



class IndexedFaceSet(VRML_node):
    def __init__(self):
        self.fields = {
            'color'           : SFNode(),
            'coord'           : SFNode(),
            'normal'          : SFNode(),
            'texCoord'        : SFNode(),
            'ccw'             : SFBool(1),
            'colorIndex'      : MFInt32(),
            'colorPerVertex'  : SFBool(1),
            'convex'          : SFBool(1),
            'coordIndex'      : MFInt32(),
            'creaseAngle'     : SFFloat(),
            'normalIndex'     : MFInt32(),
            'normalPerVertex' : SFBool(1),
            'solid'           : SFBool(1),
            'texCoordIndex'   : MFInt32(),
            }
    def draw(self):
        index = 0
        vertexarray = self.fields['coord'].value.fields['point'].value
        indexarray = self.fields['coordIndex'].value
        indexcount = len(indexarray)

        glLightModel( GL_LIGHT_MODEL_TWO_SIDE, 1.0 )

	if rendering_mode == 0:
	  glBegin( GL_POINTS )

	if rendering_mode == 1:
	  glBegin( GL_LINE_LOOP )

	if rendering_mode == 2:
	  glBegin( GL_POLYGON )

        for index in range(indexcount):
          if indexarray[index] == -1:
            glEnd()

	    if rendering_mode == 0:
	      glBegin( GL_POINTS )

	    if rendering_mode == 1:
	      glBegin( GL_LINE_LOOP )

	    if rendering_mode == 2:
	      glBegin( GL_POLYGON )

            normalcoord = self.fields['normal'].value
            if normalcoord == 0:
              if index + 3 < indexcount:
                normal(vertexarray[indexarray[index+2]],vertexarray[indexarray[index+1]],vertexarray[indexarray[index+3]])
          else:
            normalcoord = self.fields['normal'].value
            if normalcoord != 0:
              normalcoordarray = normalcoord.fields['vector'].value
              normalindexarray = self.fields['normalIndex'].value
              x,y,z = tuple(normalcoordarray[normalindexarray[index]])
              glNormal3f( x, y, z )

            texcoord = self.fields['texCoord'].value;
            if texcoord != 0:
              texcoordarray = texcoord.fields['point'].value
              texindexarray = self.fields['texCoordIndex'].value
              s,t = tuple(texcoordarray[texindexarray[index]])
              glTexCoord2f( s, t )

            x,y,z = tuple(vertexarray[indexarray[index]])
            glVertex3f( x, y, z )

        glEnd()
        glLightModel( GL_LIGHT_MODEL_TWO_SIDE, 0.0 )

class IndexedLineSet(VRML_node):
    def __init__(self):
        self.fields = {
            'color'           : SFNode(),
            'coord'           : SFNode(),
            'colorIndex'      : MFInt32(),
            'colorPerVertex'  : SFBool(1),
            'coordIndex'      : MFInt32(),
            }

class Inline(VRML_node):
    def __init__(self):
        self.fields = {
            'url'        : MFString(),
            'bboxCenter' : SFVec3f(),
            'bboxSize'   : SFVec3f(-1.,-1.,-1.),
            'nodes'      : MFNode(),
            }
    def draw(self):
        ns = self.fields['nodes']
        if not ns.value:
            # a hack: does not protect name spaces
            # can break in many ways...
            for url in self.fields['url'].value:
                ns.value.extend(doit(url))
        ns.draw()

class LOD(VRML_node):
    def __init__(self):
        self.fields = {
            'level'  : MFNode(),
            'center' : SFVec3f(),
            'range'  : MFFloat(),
            }


class Material(VRML_node):
    def __init__(self):
        self.fields = {
            'ambientIntensity' : SFFloat(.2),
            'diffuseColor'     : SFColor(.8,.8,.8),
            'emissiveColor'    : SFColor(),
            'shininess'        : SFFloat(.2),
            'specularColor'    : SFColor(),
            'transparency'     : SFFloat(1.0),
            }
    def draw(self):
        t = self.fields['transparency'].value

        r,g,b = tuple(self.fields['diffuseColor'].value)
        a = self.fields['ambientIntensity'].value
        glMaterial( GL_FRONT_AND_BACK, GL_AMBIENT, (a*r,a*g,a*b,t) )
        glMaterial( GL_FRONT_AND_BACK, GL_DIFFUSE, (r,g,b,t) )

        r,g,b = tuple(self.fields['emissiveColor'].value)
        glMaterial( GL_FRONT_AND_BACK, GL_EMISSION, (r,g,b,t) )

        r,g,b = tuple(self.fields['specularColor'].value)
        glMaterial( GL_FRONT_AND_BACK, GL_SPECULAR, (r,g,b,t) )

        s = self.fields['shininess'].value
        glMaterial( GL_FRONT_AND_BACK, GL_SHININESS, s*128 )

class MovieTexture(VRML_node):
    def __init__(self):
        self.fields = {
            'loop'      : SFBool(),
            'speed'     : SFFloat(1.),
            'startTime' : SFTime(),
            'stopTime'  : SFTime(),
            'url'       : MFString(),
            'repeatS'   : SFBool(1),
            'repeatT'   : SFBool(1),
            }

class NavigationInfo(VRML_node):
    def __init__(self):
        self.fields = {
            'avatarSize'      : MFFloat([.25,1.6,.75]),
            'headlight'       : SFBool(1),
            'speed'           : SFFloat(1.),
            'type'            : MFString(['WALK','ANY']),
            'visibilityLimit' : SFFloat(),
            }

class Normal(VRML_node):
    def __init__(self):
        self.fields = {
            'vector' : MFVec3f(),
            }

class NormalInterpolator(VRML_node):
    def __init__(self):
        self.fields = {
            'key'      : MFFloat(),
            'keyValue' : MFVec3f(),
            }

class OrientationInterpolator(VRML_node):
    def __init__(self):
        self.fields = {
            'key'      : MFFloat(),
            'keyValue' : MFRotation(),
            }

class PixelTexture(VRML_node):
    def __init__(self):
        self.fields = {
            'image'     : SFImage(),
            'repeatS'   : SFBool(1),
            'repeatT'   : SFBool(1),
            }

class PlaneSensor(VRML_node):
    def __init__(self):
        self.fields = {
            'autoOffset'  : SFBool(1),
            'enabled'     : SFBool(1),
            'maxPosition' : SFVec2f(-1,-1),
            'minPosition' : SFVec2f(),
            'offset'      : SFVec3f(),
            }


class PointLight(VRML_node):
    def __init__(self):
        self.fields = {
            'ambientIntensity' : SFFloat(),
            'attenuation'      : SFVec3f(1.,0.,0.),
            'color'            : SFColor(1.,1.,1.),
            'intensity'        : SFFloat(1.),
            'location'         : SFVec3f(),
            'on'               : SFBool(1),
            'radius'           : SFFloat(100.),
            }
    def draw(self):
        global numlights

        glPushMatrix()
        glLoadIdentity()

        light = GL_LIGHT0 + numlights

        if self.fields['on'].value == 1:
          glEnable( light )

        r,g,b = tuple(self.fields['color'].value)

        i = self.fields['intensity'].value
        glLight( light, GL_DIFFUSE, (i*r,i*g,i*b,1) )
        glLight( light, GL_SPECULAR, (i*r,i*g,i*b,1) )

        a = self.fields['ambientIntensity'].value
        glLight( light, GL_AMBIENT, (a*r,a*g,a*b,1) )

        x,y,z = tuple(self.fields['location'].value)
        glLight( light, GL_POSITION, (x,y,z,1) ) # the one makes the light positional not directional

        numlights = numlights + 1

        glPopMatrix()

class PointSet(VRML_node):
    def __init__(self):
        self.fields = {
            'color' : SFNode(),
            'coord' : SFNode(),
            }

class PositionInterpolator(VRML_node):
    def __init__(self):
        self.fields = {
            'key'      : MFFloat(),
            'keyValue' : MFRotation(),
            }

class ProximitySensor(VRML_node):
    def __init__(self):
        self.fields = {
            'center'  : SFVec3f(),
            'size'    : SFVec3f(),
            'enabled' : SFBool(1),
            }

class ScalarInterpolator(VRML_node):
    def __init__(self):
        self.fields = {
            'key'      : MFFloat(),
            'keyValue' : MFRotation(),
            }

class Script(VRML_node):
    def __init__(self):
        self.fields = {
            'url'          : MFString(),
            'directOutput' : SFBool(),
            'mustEvaluate' : SFBool(),
            }
    def parse(self, l):
        # just skip over
        expect('{',l)
        while l[0] != '}': l.pop(0)
        expect('}',l)
        return self

class Shape(VRML_node):
    def __init__(self):
        self.fields = {
            'appearance' : SFNode(),
            'geometry'   : SFNode(),
            }
    def draw(self):
        self.fields['appearance'].draw()
        self.fields['geometry'].draw()

class Sound(VRML_node):
    def __init__(self):
        self.fields = {
            'direction'  : SFVec3f(0.,0.,1.),
            'intensity'  : SFFloat(1.),
            'location'   : SFVec3f(),
            'maxBack'    : SFFloat(10.),
            'maxFront'   : SFFloat(10.),
            'minBack'    : SFFloat(1.),
            'minFront'   : SFFloat(1.),
            'priority'   : SFFloat(),
            'source'     : SFNode(),
            'spatialize' : SFBool(1),
            }


class Sphere(VRML_node):
    def __init__(self):
        self.fields = {
            'radius' : SFFloat(1.),
            }
    def draw(self):
        global detail_sphere
        r = self.fields['radius'].value
        sphere( r, detail_sphere, detail_sphere );

class SphereSensor(VRML_node):
    def __init__(self):
        self.fields = {
            'autoOffset' : SFBool(1),
            'enabled'    : SFBool(1),
            'offset'     : SFRotation(),
            }


class SpotLight(VRML_node):
    def __init__(self):
        self.fields = {
            'ambientIntensity' : SFFloat(),
            'attenuation'      : SFVec3f(1.,0.,0.),
            'beamWidth'        : SFFloat(1.570796),
            'color'            : SFColor(1.,1.,1.),
            'cutOffAngle'      : SFFloat(.785398),
            'direction'        : SFVec3f(0.,0.,-1.),
            'intensity'        : SFFloat(1.),
            'location'         : SFVec3f(),
            'on'               : SFBool(1),
            'radius'           : SFFloat(100.),
            }
    def draw(self):
        global numlights

        glPushMatrix()
        glLoadIdentity()

        light = GL_LIGHT0 + numlights

        if self.fields['on'].value == 1:
          glEnable( light )

        r,g,b = tuple(self.fields['color'].value)

        i = self.fields['intensity'].value
        glLight( light, GL_DIFFUSE, (i*r,i*g,i*b,1) )
        glLight( light, GL_SPECULAR, (i*r,i*g,i*b,1) )

        a = self.fields['ambientIntensity'].value
        glLight( light, GL_AMBIENT, (a*r,a*g,a*b,1) )

        x,y,z = tuple(self.fields['location'].value)
        glLight( light, GL_POSITION, (x,y,z,1) ) # the one makes the light positional not directional

        x,y,z = tuple(self.fields['direction'].value)
        glLight( light, GL_SPOT_DIRECTION, (x,y,z) ) # the one makes the light positional not directional

        a = self.fields['cutOffAngle'].value
        glLight( light, GL_SPOT_CUTOFF, a*90 )

        c,l,q = tuple(self.fields['attenuation'].value)
        glLight( light, GL_CONSTANT_ATTENUATION, c )
        glLight( light, GL_LINEAR_ATTENUATION, l )
        glLight( light, GL_QUADRATIC_ATTENUATION, q )

        numlights = numlights + 1

        glPopMatrix()

class Switch(VRML_node):
    def __init__(self):
        self.fields = {
            'choice'      : MFNode(),
            'whichChoice' : SFInt32(-1),
            }

class Text(VRML_node):
    def __init__(self):
        self.fields = {
            'string'    : MFString(),
            'fontStyle' : SFNode(),
            'length'    : MFFloat(),
            'maxExtent' : SFFloat(),
            }

class TextureCoordinate(VRML_node):
    def __init__(self):
        self.fields = {
            'point' : MFVec2f(),
            }


class TextureTransform(VRML_node):
    def __init__(self):
        self.fields = {
            'center'      : SFVec2f(),
            'rotation'    : SFFloat(),
            'scale'       : SFVec2f(1,1),
            'translation' : SFVec2f(),
            }
    def draw(self):
	global pi

        glMatrixMode( GL_TEXTURE )
        glLoadIdentity()

        x,y = tuple( self.fields['translation'].value )
        glTranslatef( x, y, 0 )

        x,y = tuple( self.fields['scale'].value )
        glScalef( x, y, 0 )

        a = self.fields['rotation'].value
        glRotatef( (a / pi)*180 , 0, 0, 1 )

        glMatrixMode( GL_MODELVIEW )

class TimeSensor(VRML_node):
    def __init__(self):
        self.fields = {
            'cycleInterval' : SFTime(1.),
            'enabled'       : SFBool(1),
            'loop'          : SFBool(),
            'startTime'     : SFTime(),
            'stopTime'      : SFTime(),
            }

class TouchSensor(VRML_node):
    def __init__(self):
        self.fields = {
            'enabled' : SFBool(1),
            }


class Transform(VRML_node):
    def __init__(self):
        self.fields = {
            'center'           : SFVec3f(),
            'children'         : MFNode(),
            'rotation'         : SFRotation(),
            'scale'            : SFVec3f(1,1,1),
            'scaleOrientation' : SFRotation(),
            'translation'      : SFVec3f(),
            'bboxCenter'       : SFVec3f(),
            'bboxSize'         : SFVec3f(-1,-1,-1),
            }
    def draw(self):
        glPushMatrix()

        x,y,z = tuple(self.fields['translation'].value)
        glTranslatef( x, y, z )

        x,y,z,a = tuple(self.fields['rotation'].value)
        glRotatef( 360*a/(2*3.14), x, y, z )

        x,y,z = tuple(self.fields['scale'].value)
        glScalef( x, y, z )

        self.fields['children'].draw()
        glPopMatrix()



class Viewpoint(VRML_node):
    def __init__(self):
        self.fields = {
            'fieldOfView' : SFFloat(.785398),
            'jump'        : SFBool(1),
            'orientation' : SFRotation(),
            'position'    : SFVec3f(0,0,10),
            'description' : SFString(),
            }
    def draw(self):
        global T, R
        x,y,z = tuple(self.fields['position'].value)

        T[0] = x
        T[1] = y
        T[2] = z

        x,y,z,a = tuple(self.fields['orientation'].value)

        c = cos(a)
        s = sin(a)
        t = 1-c

        R[0] = t*x*x+c
        R[1] = t*x*y-s*z
        R[2] = t*x*z+s*y
        R[3] = 0.0
        R[4] = t*x*y+s*z
        R[5] = t*y*y+c
        R[6] = t*y*z-s*x
        R[7] = 0.0
        R[8] = t*x*z-s*y
        R[9] = t*y*z+s*x
        R[10] = t*z*z+c
        R[11] = 0.0
        R[12] = 0.0
        R[13] = 0.0
        R[14] = 0.0
        R[15] = 1.0


class VisibilitySensor(VRML_node):
    def __init__(self):
        self.fields = {
            'center'  : SFVec3f(),
            'enabled' : SFBool(1),
            'size'    : SFVec3f(),
            }

class WorldInfo(VRML_node):
    def __init__(self):
        self.fields = {
            'info'  : MFString(),
            'title' : SFString(),
            }

class DEF(VRML_node):
    def __init__(self):
        self.fields = {}
    def parse(self, l):
        """Store a reference of the named node,
        use its name as a key in the DEFS dictionary"""
        name = l.pop(0)
        next = parse_node(l)
        DEFS[name] = next
        return next

class USE(VRML_node):
    def __init__(self):
        self.fields = {}
    def parse(self, l):
        """Return a reference to a previously stored node"""
        return DEFS[l.pop(0)]

class ROUTE(VRML_node):
    def __init__(self):
        self.fields = {}
    def parse(self, l):
        """Just skip without processing"""
        del l[:3]
        return self

# a few extra classes for setting up the correct OpenGL state
# for the case an Appearance node has defined no material,
# texture, or texture transform

class NoMaterial(VRML_node):
    def draw(self):
        glMaterial( GL_FRONT, GL_AMBIENT, (0.2, 0.2, 0.2, 1.0) )
        glMaterial( GL_FRONT, GL_DIFFUSE, (0.8, 0.8, 0.8, 1.0) )
        glMaterial( GL_FRONT, GL_EMISSION, (0, 0, 0, 1) )
        glMaterial( GL_FRONT, GL_SPECULAR, (0, 0, 0, 1) )
        glMaterial( GL_FRONT, GL_SHININESS, 0 )


class NoTexture(VRML_node):
    def draw(self):
        glDisable( GL_TEXTURE_2D )
        glEnable( GL_LIGHTING )


class NoTextureTransform(VRML_node):
    def draw(self):
        glMatrixMode( GL_TEXTURE )
        glLoadIdentity()
        glMatrixMode( GL_MODELVIEW )


def read_and_split(fname):
    """ read and remove comments (. matches all but newline)
    split by a quote, every other piece is string and for every
    other get rid of commas, strip and split by white space
    """
    text_no_comments = re.sub('#.*','', open(fname).read())
    tmp = split(text_no_comments, '"')
    tokens = []
    for i in range(len(tmp)):
        if i%2 == 0:
            # tokens separated by whitespace or commas
            no_commas = replace(tmp[i], ',', ' ')
            tokens.extend(split(strip(no_commas)))
        else:
            # don't modify strings (originally with quotes)
            tokens.append(tmp[i])
    return tokens

def error_out():
    """Print the error type and the line where it happened,
    then exit."""
    type, value, traceback = sys.exc_info()
    while traceback.tb_next: traceback = traceback.tb_next
    print type, traceback.tb_lineno
    sys.exit()

def parse_node(l):
    """Read in the first token, create an instance of the corresponding
    class, remove the tokens corresponding to the node from
    the token list (filling in the fields), return a reference
    to the class instance."""
    token = l.pop(0)
    try:
        return eval(token)().parse(l)
    except:
        print token
        print l[:10]
        error_out()

# a global dictionary for storing references to nodes
# named using DEF (for later use using USE)
DEFS = {}

def doit(fname):
    """The main function of this module, does it all."""
    parsetree = []
    tokens = read_and_split(fname)
    while tokens:
        parsetree.append(parse_node(tokens))
    for branch in parsetree:
        branch.draw()
    return parsetree

# the rest is just for debugging
def output(node):
    print node.__class__.__name__
    if not VRML_node in node.__class__.__bases__:
        return
    for n in node.foundFields:
        output(n)
    if node.fields.has_key('children'):
        for ch in node.fields['children'].value:
            output(ch)

if __name__ == '__main__':
    parsetree = []
    tokens = read_and_split(sys.argv[1])
    while tokens:
        parsetree.append(parse(tokens))

    output(parsetree[0])

Appendix B. Source Code for Trackball (tbex.py)

from Numeric import *
from OpenGL.GL import *
from OpenGL.GLU import *
from OpenGL.GLUT import *

T = [0,0,10]

R = [ 1.0,0.0,0.0,0.0,
      0.0,1.0,0.0,0.0,
      0.0,0.0,1.0,0.0,
      0.0,0.0,0.0,1.0 ]

def project(r, x, y):
    """Project an x,y pair onto a sphere of radius r if we are within
    sqrt(2) * r from center OR a hyperbolic sheet if we are farther away."""
    dd = x*x+y*y
    rr = r*r
    if dd < .5 * rr:    # on sphere
        return sqrt(rr - dd)
    else:               # on hyperbola
        return .5 * rr / sqrt(dd)


def rotation(w, h, x, y, ox, oy):
    """Given screen size, new and old mouse coordinates,
    calculate the new rotation for the trackball."""

    # center of the screen
    c = [w/2, h/2]

    # radius is the half the smaller screen extent
    if w < h: r = c[0]
    else:     r = c[1]

    # mouse point in screen centered coords
    #x,y   = x - c[0],  y - c[1]
    #ox,oy = ox - c[0], oy - c[1]
    x,y   = x - c[0],  h-1-y - c[1]
    ox,oy = ox - c[0], h-1-oy - c[1]

    if x == ox:
      if y == oy:
        return

    # get 3d points by projecting from screen
    p1 = [ox, oy, -project(r, ox, oy)]
    p2 = [x, y, -project(r, x, y)]

    # the origin is at the center of the sphere
    # calculate the angle between p1 and p2

    # my code here (normalize p1 and p2, dot product)
    l1 = sqrt( p1[0] * p1[0] + p1[1] * p1[1] + p1[2] * p1[2] )
    p1[0] = p1[0] / l1
    p1[1] = p1[1] / l1
    p1[2] = p1[2] / l1

    l2 = sqrt( p2[0] * p2[0] + p2[1] * p2[1] + p2[2] * p2[2] )
    p2[0] = p2[0] / l2
    p2[1] = p2[1] / l2
    p2[2] = p2[2] / l2

    a_cos = p1[0] * p2[0] + p1[1] * p2[1] + p1[2] * p2[2]
    a_sin = sqrt( 1 - a_cos * a_cos )

    # calculate the rotation axis for rotating p1 to p2
    # hint: the axis is perpendicular to both p1 and p2

    #p3 = [ p1[1] * p2[2] - p1[2] * p2[1], p1[0] * p2[2] - p1[2] * p2[0], p1[0] * p2[1] - p1[1] * p2[0] ]
    p3 = [ p1[1] * p2[2] - p1[2] * p2[1], p1[2] * p2[0] - p1[0] * p2[2], p1[0] * p2[1] - p1[1] * p2[0] ]

    l = sqrt( p3[0] * p3[0] + p3[1] * p3[1] + p3[2] * p3[2] )
    p3[0] = p3[0] / l
    p3[1] = p3[1] / l
    p3[2] = p3[2] / l

    # my code here, compound the new rotation with the
    # old one, stored in R

    global R

    M = [ R[0], R[1], R[2], R[3], R[4], R[5], R[6], R[7], R[8], R[9], R[10], R[11], R[12], R[13], R[14], R[15] ]

    C = [ a_cos + (1.0 - a_cos) * p3[0] * p3[0],
          (1.0 - a_cos) * p3[0] * p3[1] + p3[2] * a_sin,
          (1.0 - a_cos) * p3[0] * p3[2] - p3[1] * a_sin,
          0.0,
          (1.0 - a_cos) * p3[0] * p3[1] - p3[2] * a_sin,
          a_cos + (1.0 - a_cos ) * p3[1] * p3[1],
          (1.0 - a_cos) * p3[1] * p3[2] + p3[0] * a_sin,
          0.0,
          (1.0 - a_cos) * p3[0] * p3[2] + p3[1] * a_sin,
          (1.0 - a_cos) * p3[1] * p3[2] - p3[0] * a_sin,
          a_cos + (1.0 - a_cos) * p3[2] * p3[2],
          0.0,
          0.0,
          0.0,
          0.0,
          1.0 ]

    for i in range(4):
      for j in range(4):
        sum = 0.0
        for k in range(4):
          sum = sum + C[k*4+i]*M[j*4+k]
        R[j*4+i] = sum


def zoom(y, oy):
    """Given old and new y coordinate, modify the
    translation of the trackball for zoom effect."""

    # a good way to implement the zooming is the modify the
    # camera's distance from the origin by a factor of
    # e.g., 2^((y - oy) / 80.0)

    T[2] += (y - oy) / 200.0


def pan(x,y,ox,oy):
    # how far in the viewplane are pixels apart? scale panning accordingly

    T[0] += (x - ox) / 200.0

Appendix C. Source Code for VRML Parser/Renderer (ex_viewer.py)

#!/usr/bin/env python

"""\
A simple VRML viewer
"""

from OpenGL.GL import *
from OpenGL.GLU import *
from OpenGL.GLUT import *
from TBEX import *
from VRML97 import *
import sys, time
#import sys, time, ex_vrml97

filename=''
W = 0
H = 0
display_help = 0

def frustum(l,r,b,t,n,f):
  mat = glGetDoublev(GL_PROJECTION_MATRIX)

  mat[0][0] = 2.0*n/float(r-l)
  mat[0][1] = 0.0
  mat[0][2] = 0.0
  mat[0][3] = 0.0

  mat[1][0] = 0.0
  mat[1][1] = 2.0*n/float(t-b)
  mat[1][2] = 0.0
  mat[1][3] = 0.0

  mat[2][0] = (r+l)/float(r-l)
  mat[2][1] = (t+b)/float(t-b)
  mat[2][2] = -(f+n)/float(f-n)
  mat[2][3] = -1.0

  mat[3][0] = 0.0
  mat[3][1] = 0.0
  mat[3][2] = -2.0*f*n/float(f-n)
  mat[3][3] = 0.0

  glMultMatrixd(mat)

def text(x, y, message):
  glLoadIdentity()
  glTranslatef(x, y, 0)
  glScalef( 0.2, 0.2, 0.2 )
  glColor4( 1.0, 1.0, 1.0, 1.0 )
  for m in message:
    glutStrokeCharacter( GLUT_STROKE_ROMAN, ord( m ) )

def help():
  global W, H

  glMaterial( GL_FRONT_AND_BACK, GL_AMBIENT, (1, 1, 1, 1) )
  glMaterial( GL_FRONT_AND_BACK, GL_DIFFUSE, (1, 1, 1, 1) )
  glMaterial( GL_FRONT_AND_BACK, GL_SPECULAR, (1, 1, 1, 1) )
  glMaterial( GL_FRONT_AND_BACK, GL_EMISSION, (1, 1, 1, 1) )
  glMaterial( GL_FRONT_AND_BACK, GL_SHININESS, 0 )

  glMatrixMode( GL_PROJECTION )
  glLoadIdentity()
  gluOrtho2D( 0, W, 0, H)

  glMatrixMode( GL_MODELVIEW )

  text( 10, H-30*1, 'Help on Keyboard Commands' )
  text( 10, H-30*2, 'H - Toggles help text on/off' )
  text( 10, H-30*3, 'A - Enables/disables alpha blending' )
  text( 10, H-30*4, 'C - Enables/disables backface culling' )
  text( 10, H-30*5, 'D - Enables/disables depth buffering' )
  text( 10, H-30*6, 'P - Rotates between rendering modes: points, lines and shaded+textured' )
  text( 10, H-30*7, 'L - Toggles main light on/off' )
  text( 10, H-30*8, 'Q - Quit' )


def display():
    global T, R, display_help

    #print 'display'
    glClearColor( 0, 0, 0.5, 0 )
    glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT)

    if display_help == 1:
      help()

    glMatrixMode(GL_PROJECTION)
    glLoadIdentity()
    # these values work for the box
    # the values should be different if the scene is bigger,
    # or if you have been zooming around with trackball
    #near, far = 7, 15
    #gluPerspective(45,
    #               float(W)/H, # aspect ratio
    #               near, far)
    frustum(-1.3, 1.3, -1.0, 1.0, 3.0, 100.0)

    # by default in VRML, camera is at 0,0,10, looking at 0,0,0
    # you need to take the translation from the trackball,
    # as well as the rotation. in which order, translation before
    # rotation or vice versa? why that order and not the other?
    glMatrixMode(GL_MODELVIEW)
    glLoadIdentity()
    glTranslate( -T[0], -T[1], -T[2] )
    glMultMatrixd( R )

    glCallList( 1 )

    glutSwapBuffers()

def reshape(w,h):
    print 'reshape'
    global W,H
    W,H = w,h
    glViewport(0,0,w,h)

state = 0 # 0 rot, 1 zoom, 2 pan
ox = 0
oy = 0

def mouse(button, release, x, y):
    global ox, oy

    print 'mouse', button, release, x, y
    mod = glutGetModifiers()
    global state
    if mod & GLUT_ACTIVE_CTRL:
        state = 1
    elif mod & GLUT_ACTIVE_SHIFT:
        state = 2
    else:
        state = 0
    ox = x
    oy = y

def motion(x, y):
    global W,H,ox,oy
    print 'motion', x, y
    if state == 1:
        print 'zooming'
        zoom(y,oy)
        ox = x
        oy = y

    elif state == 2:
        print 'panning'
        pan(x,y,ox,oy)
        ox = x
        oy = y
    else:
        rotation(W,H,x,y,ox,oy)
        ox = x
        oy = y
	print 'rotating'
    glutPostRedisplay()


def kb(key, x, y):
    global filename, display_help

     # quit
    if key == 'q':
      sys.exit()

    # toggle alpha blending on/off
    if key == 'a':
      if glGetInteger( GL_BLEND ) == 1:
        glDisable( GL_BLEND )
      else:
        glEnable( GL_BLEND )

    # toggle backface culling on/off
    if key == 'c':
      if glGetInteger( GL_CULL_FACE ) == 1:
        glDisable( GL_CULL_FACE )
      else:
        glEnable( GL_CULL_FACE )

    # toggle depth buffering on/off
    if key == 'd':
      if glGetInteger( GL_DEPTH_TEST ) == 1:
        glDisable( GL_DEPTH_TEST )
      else:
        glEnable( GL_DEPTH_TEST )

    # toggle polygon drawing mode: polygon, lines, points
    if key == 'p':
      next_rendering_mode()

      glDeleteLists( 1, 1 )
      glNewList( 1, GL_COMPILE )
      doit(filename)
      glEndList()

    # toggle main light on/off
    if key == 'l':
      if glGetInteger( GL_LIGHT0 ) == 1:
        glDisable( GL_LIGHT0 )
      else:
        glEnable( GL_LIGHT0 )

    # help on keyboard commands
    if key == 'h':
      print 'help'
      display_help = 1 - display_help

    glutPostRedisplay()

def init():
    global filename

    glNewList( 1, GL_COMPILE )
    doit(filename)
    glEndList()

    glDisable( GL_CULL_FACE )
    glCullFace( GL_BACK )

    glShadeModel( GL_SMOOTH )
    glPolygonMode( GL_FRONT_AND_BACK, GL_FILL )
    glEnable( GL_DEPTH_TEST )
    glDepthFunc( GL_LESS )
    glEnable( GL_BLEND )
    glBlendFunc( GL_SRC_ALPHA, GL_ONE_MINUS_SRC_ALPHA )


    glEnable( GL_LIGHTING )
    glEnable( GL_LIGHT0 )
    glLight( GL_LIGHT0, GL_AMBIENT, (1,1,1,1) )
    glLight( GL_LIGHT0, GL_DIFFUSE, (1,1,1,1) )
    glLight( GL_LIGHT0, GL_SPECULAR, (1,1,1,1) )

def main(input_file):
    global filename
    filename = input_file
    glutInit([])
    glutInitDisplayMode(GLUT_DOUBLE | GLUT_RGBA | GLUT_DEPTH)
    glutInitWindowSize(400,400)
    glutInitWindowPosition(300,100)
    glutCreateWindow('VRML viewer')

    #glutFullScreen();

    glutReshapeFunc(reshape)
    glutDisplayFunc(display)
    glutMouseFunc(mouse)
    glutMotionFunc(motion)
    glutKeyboardFunc(kb)
    init()
    glutMainLoop()

if __name__ == '__main__':
    main(sys.argv[1])

Appendix D. VRML Scene Code (bicycle.wrl)

#VRML V2.0 utf8
#Test scene for VRML viewer



# Light definitions

DirectionalLight {
    ambientIntensity .0
    intensity 1
    color 0.2 0.5 1.0
    direction 1 0 0
}

DirectionalLight {
    ambientIntensity .0
    intensity 1
    color 1.0 0.5 0.2
    direction -1 0 0
}

PointLight {
    ambientIntensity 1
    intensity .5
    color 1 0 1
    location 0 -10 0
}


SpotLight {
    ambientIntensity 1
    intensity 1
    color 0 1 1
    location 0 4 0
    direction 0 -1 0

}



# Material definitions

DEF RedWheel Material {
	diffuseColor .6 .1 .1
}

DEF YellowBar Material {
	diffuseColor 1 1 0
}

DEF Metal Material {
	ambientIntensity .15
	diffuseColor .5 .5 .5
	shininess 1
	specularColor .5 .5 .5
}

DEF BlackRubber Material {
	diffuseColor 0 0 0
	shininess .2
	specularColor .1 .1 .1
}

DEF BlueMaterial Material {
	diffuseColor .2 .2 .9
}


#Primitives



#front wheel
Transform {
	translation 1 0 0
	rotation 1 0 0 1.55

	children [
		Shape {
			appearance Appearance {
				material USE RedWheel
			}
			geometry Cylinder {
				height .1
				radius .8
			}
		}
	]
}


#back wheel
Transform {
	translation -2 0 0
	rotation 1 0 0 1.55

	children [
		Shape {
			appearance Appearance {
				material USE RedWheel
			}
			geometry Cylinder {
				height .1
				radius .8
			}
		}
	]
}


#fork
Transform {
	translation .6 .9 0
	rotation 0 0 1 .5

	children [
		Shape {
			appearance Appearance {
				material USE YellowBar
			}
			geometry Cylinder {
				height 2
				radius .08
			}
		}
	]
}


#saddle - basebar
Transform {
	translation -1.6 .9 0
	rotation 0 0 1 -0.4

	children [
		Shape {
			appearance Appearance {
				material USE YellowBar
			}
			geometry Cylinder {
				height 2
				radius .08
			}
		}
	]
}


#saddle
Transform {
	translation -1.1 1.8 0
	rotation 0 0 1 -1.75
	scale .1 1 .3

	children [
		Shape {
			appearance Appearance {
				material Material {
					ambientIntensity 0
					diffuseColor .3 .2 .1
					shininess 0
					specularColor .2 .1 .0
				}
			}
			geometry Cone {
				height .8
				bottomRadius 1
			}
		}
	]
}


#middle bar
Transform {
	translation -.5 .9 .0
	rotation 0 0 1 1.6

	children [
		Shape {
			appearance Appearance {
				material USE YellowBar
	                        texture DEF oglTexture ImageTexture { url "b_texture.jpg" }
	       	                textureTransform TextureTransform {
					rotation 0
					translation 0.4 0
				}
			}
			geometry Cylinder {
				height 2.2
				radius .1
			}
		}
	]
}



#bottom bar - back
Transform {
	translation -1.1 .4 0
	rotation 0 0 1 .8

	children [
		Shape {
			appearance Appearance {
				material USE YellowBar
			}
			geometry Cylinder {
				height 1.44
				radius .08
			}
		}
	]
}


#bottom bar - front
Transform {
	translation -.1 .4 0
	rotation 0 0 1 -0.8

	children [
		Shape {
			appearance Appearance {
				material USE YellowBar
			}
			geometry Cylinder {
				height 1.51
				radius .08
			}
		}
	]
}




#handlebar
Transform {
	translation .2 1.7 0
	rotation 1 0 0 1.55

	children [
		Shape {
			appearance Appearance {
				material USE Metal
			}
			geometry Cylinder {
				height 1.8
				radius .06
			}
		}
	]
}


#handlebar - right handle
Transform {
	translation .2 1.72 .8
	rotation 1 0 0 1.55

	children [
		Shape {
			appearance Appearance {
				material USE BlackRubber
			}
			geometry Cylinder {
				height .35
				radius .08
			}
		}
	]
}


#handlebar - left handle
Transform {
	translation .2 1.69 -.8
	rotation 1 0 0 1.55

	children [
		Shape {
			appearance Appearance {
				material USE BlackRubber
			}
			geometry Cylinder {
				height .35
				radius .08
			}
		}
	]
}


#bell
Transform {
	translation .2 1.78 .5

	children [
		Shape {
			appearance Appearance {
				material USE Metal
			}
			geometry Cylinder {
				height .05
				radius .1
			}
		}
	]
}


#bell - top
Transform {
	translation .2 1.83 .5

	children [
		Shape {
			appearance Appearance {
				material USE Metal
			}
			geometry Cone {
				height .05
				bottomRadius .1
			}
		}
	]
}


#pedal - cover
Transform {
	translation -.6 -.1 .1
	rotation 1 0 0 1.55

	children [
		Shape {
			appearance Appearance {
				material USE BlueMaterial
			}
			geometry Cylinder {
				height .02
				radius .2
			}
		}
	]
}


#pedal - front - rod
Transform {
	translation -.45 -.25 .15
	rotation 0 0 1 0.8

	children [
		Shape {
			appearance Appearance {
				material USE Metal
			}
			geometry Cylinder {
				height .4
				radius .03
			}
		}
	]
}


#pedal - front
Transform {
	translation -.30 -.4 .35
	rotation 1 0 0 1.55

	children [
		Shape {
			appearance Appearance {
				material USE BlueMaterial
			}
			geometry Box {
				size .2 .4 .1
			}
		}
	]
}


#pedal - back - rod
Transform {
	translation -.75 .05 -.1
	rotation 0 0 1 0.8

	children [
		Shape {
			appearance Appearance {
				material USE Metal
			}
			geometry Cylinder {
				height .4
				radius 0.03
			}
		}
	]
}


#pedal - back
Transform {
	translation -.9 .2 -.3
	rotation 1 0 0 1.55

	children [
		Shape {
			appearance Appearance {
				material USE BlueMaterial
			}
			geometry Box {
				size .2 .4 .1
			}
		}
	]
}

Appendix E. References

[1] T. Möller, E. Haines: Real Time Rendering, AK Peters, Natick, Massachusetts, 1999

[2] D. Shreiner (editor): OpenGL Reference Manual, Third Edition, Addison-Wesley, Reading, Massachusetts, 1999
